Description

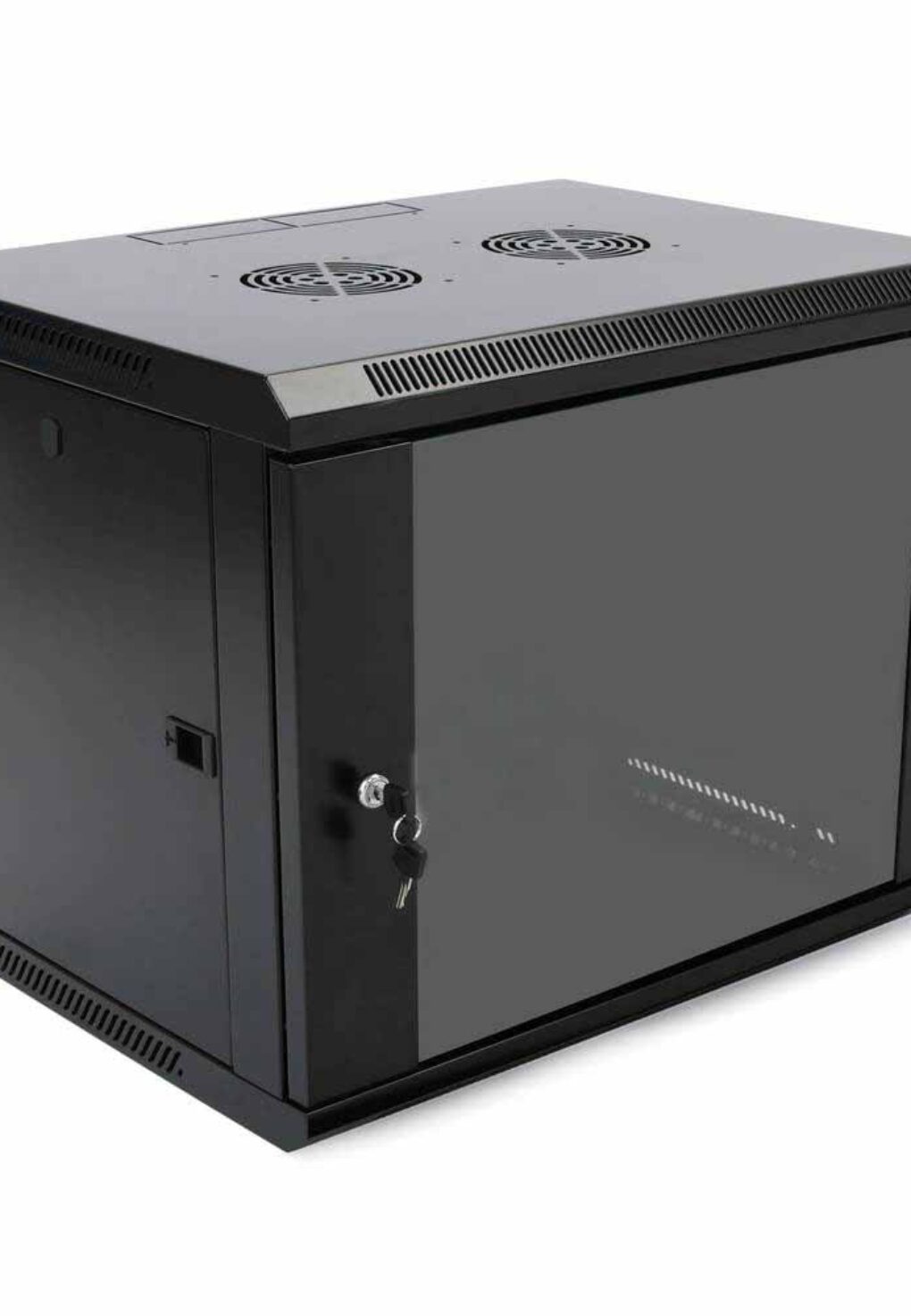

Revez Data Cabinet Wall Mounted 570mm Width (6U-27U)

Revez range of wall mounted data cabinets, available in all popular sizes from 6U to 27U. This 570mm width range comes with a loading capacity of 60KG. Constructed from SPCC Cold Rolled Steel with a lovely powder painted finish, these units are built to last. The door is swappable from left to right to fit all applications.

Features:

• Fan slot on the top and bottom (not included)

• Removable sides

• Lockable tempered glass front door

• Lockable quick release side panels

• Cable entry cut out in top and base

• Supplied Flat Packed for ease of transport and assembly

• Flippable door for easy access from either side

• Adjustable 19” mounting profiles

• Shelves not included

Model	U	Width(mm)	Depth(mm)	Height(mm)
WM-6U450-FP	6	570	450	370
WM-6U600-FP	6	570	600	370
WM-9U450-FP	9	570	450	500
WM-9U600-FP	9	570	600	500
WM-12U450-FP	12	570	450	635
WM-12U600-FP	12	570	600	635
WM-15U450-FP	15	570	450	770
WM-15U600-FP	15	570	600	770
WM-18U450-FP	18	570	450	900
WM-18U600-FP	18	570	600	900
WM-22U450-FP	22	570	450	1080
WM-22U600-FP	22	570	600	1080
WM-27U450-FP	27	570	450	1305
WM-27U600-FP	27	570	600	1305
