Revez RAPID-4 NVR – 4 Channel Network Video Recorder

Revez RAPID-4 Netword Video Recorder

Category:

Description

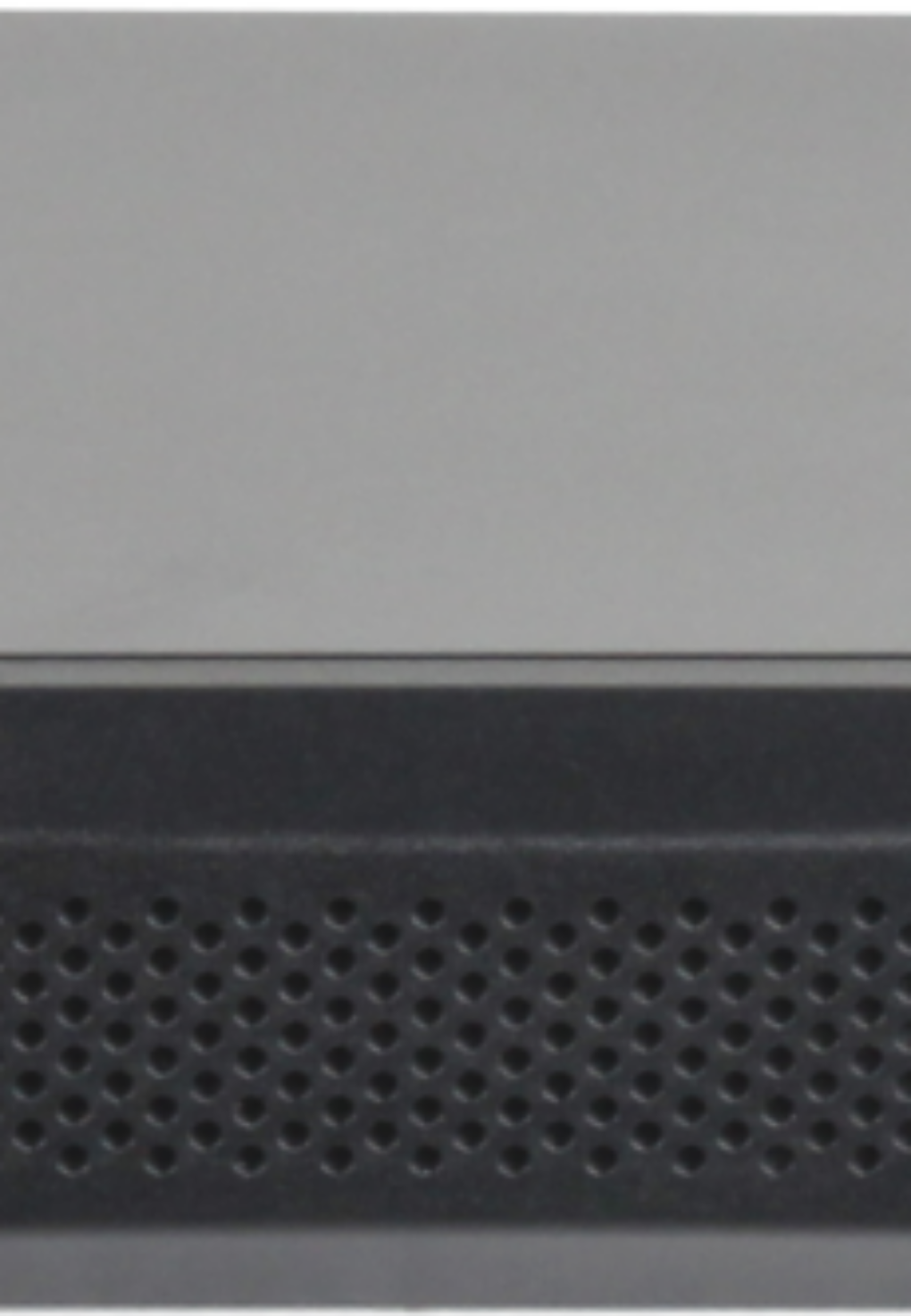

Revez RAPID-4 NVR

4 Channel Network Video Recorder

Latest model Revez NVR suitable for Revez IP Cameras.

This new model has POE built in and Cloud P2P allowing easy mobile access via the Android/iPhone apps.

Features:

  • 4 Channel Network Video Recorder
  • 4 Channels Camera Input 6MP/5MP/4MP/3MP/1080P/720P/4CIF
  • 1 Channel Realtime Display 6MP/5MP/4MP/3MP – 4 Channels 1080P/720P/4CIF
  • 4 Channels 1080P/720P/4CIF Synced Playback
  • Third Party ONVIF Network Cameras Supported
  • Up to 6MP Resolution Recording Supported
  • Plug & Play with up to 4 Independant PoE Network Interfaces
  • Supports 4 Channel Intelligent Analysis Process
  • Smart Search & Recording Option
  • Supports 1 SATA HDD up to 6TB Capacity, Alarm I/O, Audio 1/O, 2 USB Ports

Specifications:



Video/Audio Input
IP Video Input 4-ch
Two-way Audio Input 1-ch, AUX3.5mm
Network
Incoming Bandwidth 40Mbps
Outgoing Bandwidth 40Mbps
Remote Connection 32-ch Access
Internet Protocol TCP/UDP/HTTP/MULTICAST/UPnP/DHCP/PPPoE/DDNS/NFS/FTP/NTP/HTTPS/RTSP/SMTP/SADP/SNMP
Video/Audio Output
HDMI Output 1-ch, Resolution 1920*1080P/60Hz, 1920*1080P/50Hz, 1280*800/60Hz, 1440*900/60Hz,1366*768/60Hz, 1280*720/60Hz, 1280*720/50Hz,1024*768/60Hz,800*600/60Hz
VGA Output 1-ch, Resolution 1920*1080P/60Hz, 1920*1080P/50Hz, 1280*800/60Hz, 1440*900/60Hz,1366*768/60Hz, 1280*720/60Hz, 1280*720/50Hz,1024*768/60Hz,800*600/60Hz
Frame Rate Mainstream 25fps(P)/30fps(N)                                                                       Substream 25fps(P)/30fps(N)
I-Frame Record Y
Recording Resolution 6MP(2752*2208,3008*2008,2408*2008)/5MP(2448*2048,2560*1920,2592*1944,2592*1920,2528*2128/4MP(2560*1440,2592*1520)/QSXGA(2560*2045)/3MP(2048*1536)/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output 1-ch, RCA (Linear, 1kΩ)
Synchronous Playback 4-ch1080P/720P/4CIF
Decoding
Live View/Playback 6MP(2752*2208,3008*2008,2408*2008)/5MP(2448*2048,2560*1920,2592*1944,2592*1920,2528*2128/4MP(2560*1440,2592*1520)/QSXGA(2560*2045)/3MP(2048*1536)/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability 1-ch 6MP/5MP/4MP/3MP/4-ch1080P/720P
Display Split 1/4
E-Zoom Y
Hard Disk
SATA 1 SATA for 1 HDD
Capacity Up to 6TB Capacity for Each HDD
NTFS Files System Y
HDD Management Group and Quota
External Interface
Network Interface 1 RJ-45 100/1000 Self-adaptive Ethernet Interfaces
USB Interface 1 x USB2.0, 1 x USB3.0
Alarm In N/A
Alarm Out 1-ch
POE
Interface 4 Independent 100 Mbps PoE Network Interfaces
Max Power 45W(50W Optional), Max to 30W for Each Port
Supported Standard AF and AT
Advanced
IPC Management IPC Centralized Management
Plug and Play Y, Only for Revez Cameras
Corridor Mode Y, 169 to 916, Only for Revez Cameras
Video Analytics(IVA) 4-ch Revez Camera IVA Process (Tripwire and Perimeter)
Smart Search Quickly Search Target IVA Videos , Only for Revez Cameras
Smart Recording Manual/Timing/Motion Detection/Alarm/Redundant Backup/Holiday/I-frame Storage
Onvif Onvif (Profile S)
General
Languge English, Spanish, Korean, Italian, Turkish, Thai, Russian, Simple Chinese, Traditional Chinese
Power Supply DC 48V
Consumption(without HDD and POE) ≤20W
Working Temperature -10 ºC ~ +55 ºC (+14 ºF~ + 131 ºF)
Working Humidity 10 % ~ 90 %
Chassis 1U
Dimensions 255mm x 231mm x 44mm
Weight 1KG (without HDD), 1.5KG (with Packing Box)
