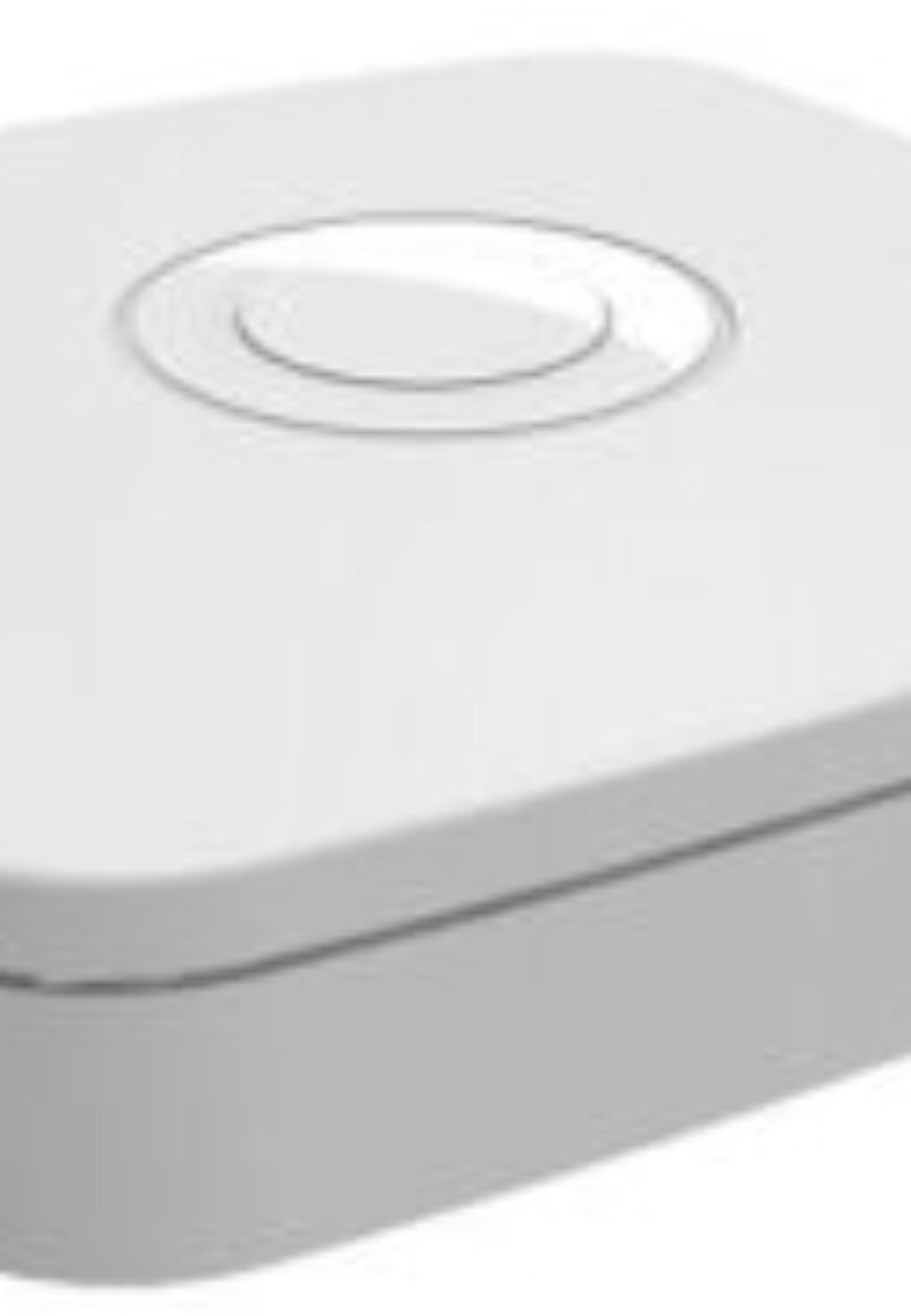

Revez Vulcano-4 (4 Channel AHD DVR 1080P)
Revez Vulcano-4 (4 Channel AHD DVR 1080P)
Category:
XVR / AHD DVRs
Description
Description
Description of Revez Vulcano-4 (4 Channel AHD DVR 1080P)
Specification:
Video Input: AHD: Max 4CHx1080P / IPC: Max 9CHx1080P / Analog: Max 4CHx960H/D1
Video Output: 1xHDMI /1xVGA /1xCVBS
Audio Input/Output: RCA 2CH In/ 1CH Out
Compression Method: H.264
AHD: 1080P/720P, PAL every channel 1fps-25fps adjustable;
NTSC every channel 1fps-30fps adjustable;
Analog: 960H/D1, PAL every channel 1fps-25fps adjustable;
NTSC every channel 1fps-30fps adjustable;
IPC: 1080P/960P/720P (Total incoming bandwidth ≤40M),
PAL every channel 1fps-25fps adjustable; NTSC every channel 1fps-30fps adjustable;
Preview resolution: 1080P/720P/960H
Playback: Support single channel mode.
Hexaplex operation simultaneously: Live, Recording, Playback, Network Operating
Static, Dynamic IP and DDNS, P2P, Support Internet Explorer and Special Client Software
2×USB ; 1xRJ45(10M/100M adaptive Ethernet interface)
1 SATA Hard Disk Interface (2.5″/3.5″ SATA, Up to 4TB)
Backup: USB2.0 (such as U disk, USB Drive) and network
Support remote view by Mobilephone (iPhone, iPad, Android, Windows Phone)
Color: White
Power consumption: DC 12V ≤6W
Dimensions (L×W×H): 215*215*53(mm) Weight: 2kg
