Description

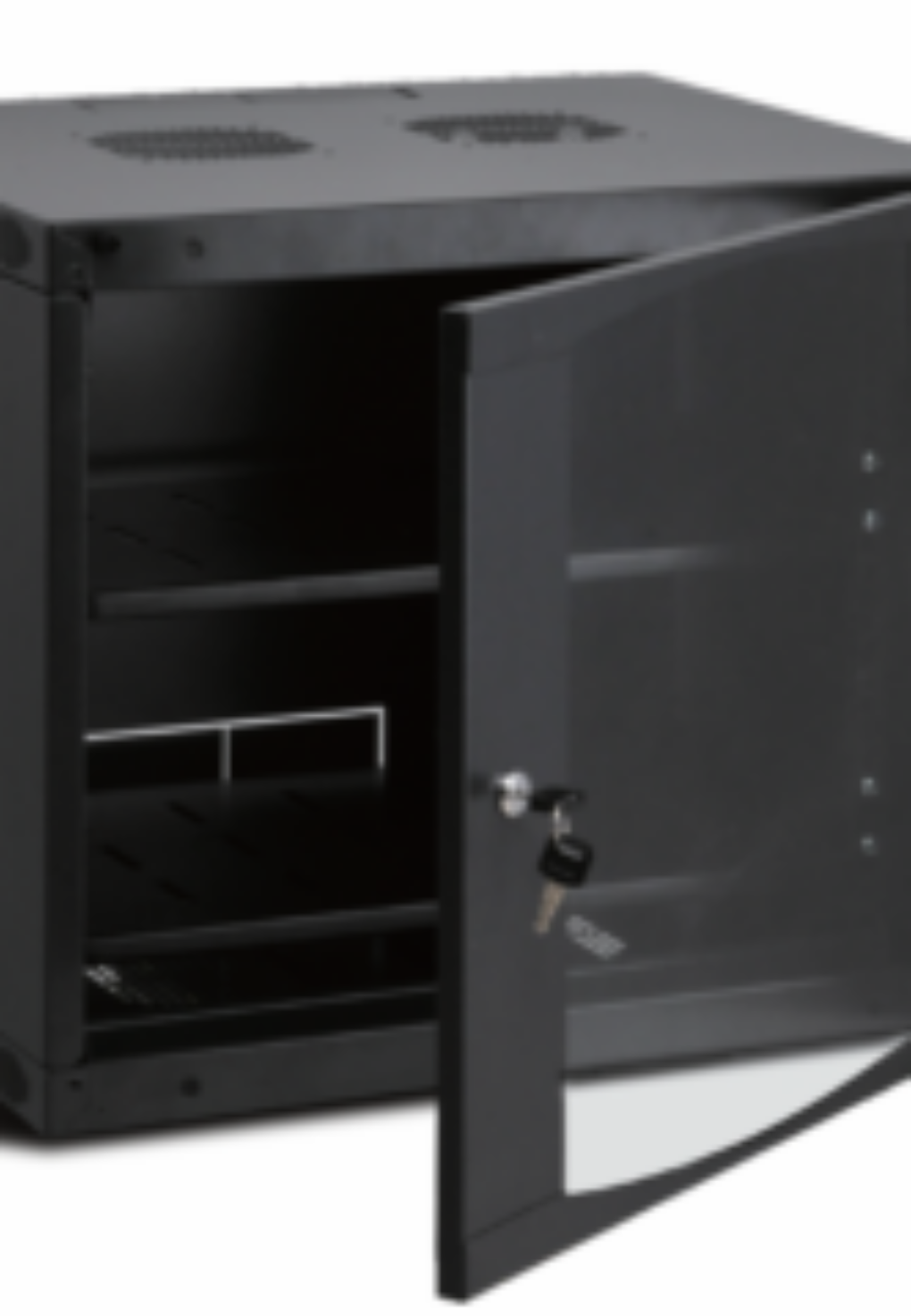

Revez Wall Mounted Data Cabinet 540mm Width

Revez range of wall mounted data cabinets, available in all popular sizes from 6U to 15U. This 540mm width range comes with a loading capacity of 30KG. Constructed from SPCC Cold Rolled Steel with a lovely powder painted finish, these units are built to last. The door is swappable from left to right to fit all applications.

Features:

• Fan slot on the top and bottom (not included)

• Removable sides

• Lockable tempered glass front door

• Lockable quick release side panels

• Cable entry cut out in top and base

• Supplied flat packed, easy assembly within minutes

• Flippable door for easy access from either side

• Adjustable 19” mounting profiles

• Shelves not included

Model	U	Width(mm)	Depth(mm)	Height(mm)
RW-6U450-FP	6	540	450	327
RW-6U600-FP	6	540	600	327
RW-9U450-FP	9	540	450	460
RW-9U600-FP	9	540	600	460
RW-12U450-FP	12	540	450	593
RW-12U600-FP	12	540	600	593
RW-15U450-FP	15	540	450	725
RW-15U600-FP	15	540	600	725

Datasheet in attachments

Revez Wall Mounted Data Cabinet 540mm Width (6U-15U)
